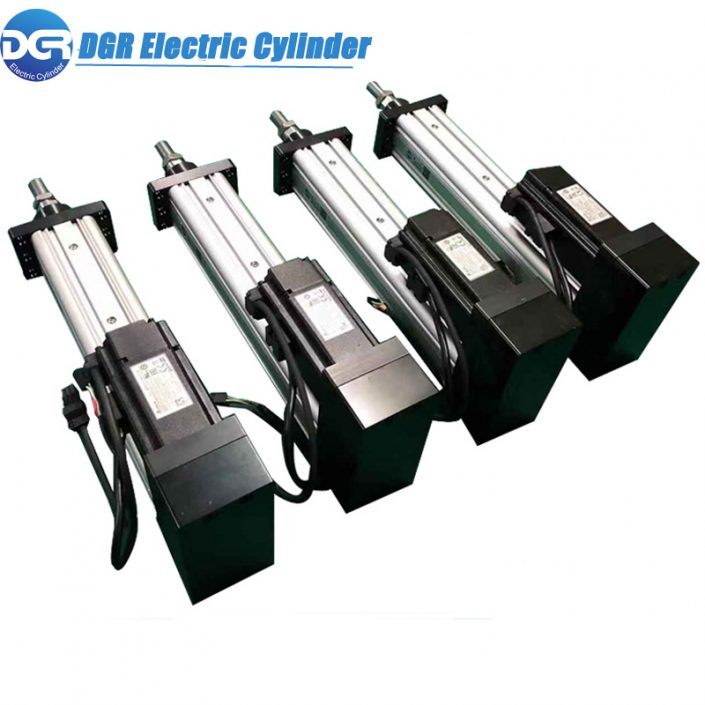

DGRLT64 DMX512 Control Electric Servo Linear Actuator for 3D Robotic LED Billboard

DGRLT64 Electric Servo Linear Actuator is compatible with DMX512 protocol, used for controlling the movement of LED screens for 3D robotic billboard application, the speed and stroke can be adjusted via a DMX512 control console, it can work non-stop 24 hour 100% duty cycle.

Thechincal Data

DGRLT64 DMX512 Control Servo Linear Actuator Thechincal Data

Product SeriesDGRLT64
Screw lead / pitch (mm)510
Max. Power of Motor (W)750
Max. Rated Thrust1500(N)=
Max. Speed 250(mm/s)=9.8(inch/s)500(mm/s)=19.6(inch/s)
Max. stroke1200(mm)=47.2(inch)
Rated Driving Torque (N.m)1.32.5
Max. Ball Screw Diameter (mm)1616
Rated Dynamic Load of Ball Screw (kgf)13801103
Axial Backlash (mm)0.02-0.04
Lead Error Every 300mm (mm)0.023
Repeatability Accuracy (mm)0.02

If you need to know the ball screw life, please contact customer service for detailed consultation;Note:

  1. The max. thrust and the max. speed can not be reached at the same time. Different motor and gear boxes will be used.
  2. If the Max. stroke exceeds 500mm, it is recommended to add a guiding device;

Note: If you require beyond the specification chart above, please contact us directly, we can able to customize according to customers’ requirements on the load (up to 20 ton), speed(up to 2000mm/s) and stroke (up to 2800mm).

Motor Selection List

DGRLT64 Electric Servo Linear Actuator Motor Selection List

Product SeriesDGRLT64
Flange Size of Optional Servo Motor Series (mm)60/ 80
Flange Size of Optional Stepper Motor Series (mm)57/ 60
Flange Size of Optional Gear Box Series (mm)60/ 80

Note:

1.DGR electric cylinder servo motor brands include Panasonic, Mitsubishi, Yaskawa, Delta, Syntron, Motec, and Tuoda;

  1. DGR electric cylinder stepper motor brands include Japan Samsr, Leadshine, MOONS’, etc;
  2. The DGR electric cylinder gear box brands include Nidec-Shimpo, Taiwan KunTai, Taiwan Li Ming, and Shanghai Jinmo;
  3. The cylinder can be equiped with a motor or gear box, and the motor brands and gear box brands can be designated by the customers, please kindly contact our sales for more detailed information;
Dimensions

DGRLT64 DMX512 Control Electric Servo Linear Actuator Dimensions

light duty linear actuators

Model Code

DGRLT64 DMX512 Control  Linear Actuator  model Code:

High precision servo electric linear actuator
