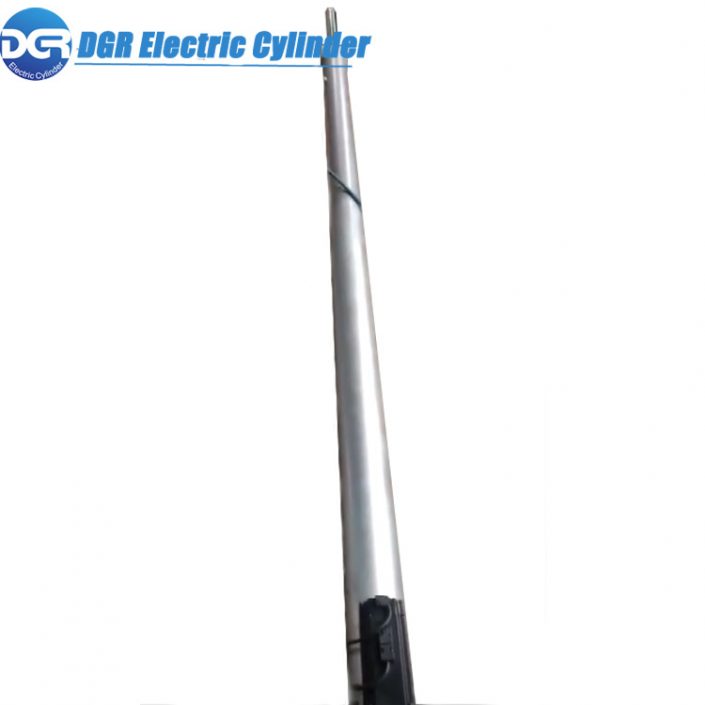

DGRHT100 Long Stroke 15KN Lifting 100% Duty Cycle Working Industrial Electric Linear Actuator

This long stroke rod piston electric servo linear actuator can extend up to 3000mm in movement, it works with stepper or servo motors to create a flexible, powerful, yet cost-effective linear actuator solution over pneumatic cylinders or hydraulic cylinders.

Technical Data

DGRHT100 100% Duty Cycle Long Stroke lifting Electric Servo Linear Actuator Technical Data

Product SeriesDGRHT100
Screw lead / pitch (mm)510
Max. Power of Motor (W)4500
Max. Rated Thrust 15000N=3372.1 lb
Max. Speed 250mm/s=9.8inch/s500mm/s=19.6inch/s
Max. stroke 2000mm=78.7inch=6.6ft
Rated Driving Torque (N.m)1430
Max. Ball Screw Diameter (mm)3232
Rated Dynamic Load of Ball Screw (kgf)19224805
Axial Backlash (mm)0.02-0.040.02-0.04
Lead Error Every 300mm (mm)0.0230.023
Repeatability Accuracy (mm)0.020.02

Note:

  1. If you need to know the ball screw life, please contact customer service for detailed consultation;
  2. The max. thrust and the max. speed can not be reached at the same time. Different motor and gear boxes will be used.
  3. If the Max. stroke exceeds 500mm, it is recommended to add a guiding device;

Note: If you require beyond the specification chart above, please contact us directly, we can able to customize according to customers’ requirements on the load (up to 20 ton), speed(up to 2000mm/s) and stroke (up to 2800mm).

Motor Selection List

DGRHT100 Linear Actuator For Automatic Alignment Machine Motor Selection List

Product SeriesDGRHT100
Flange Size of Optional Servo Motor Series (mm)100/ 120/ 130/ 180
Flange Size of Optional Stepper Motor Series (mm)110/ 130
Flange Size of Optional Gear Box Series (mm)90/ 120/ 160

Note:

1.DGR electric cylinder servo motor brands include Panasonic, Mitsubishi, Yaskawa, Delta, Syntron, Motec, and Tuoda;

2.DGR electric cylinder stepper motor brands include Japan Samsr, Leadshine, MOONS’, etc;

3.The DGR electric cylinder gear box brands include Nidec-Shimpo, Taiwan KunTai, Taiwan Li Ming, and Shanghai Jinmo;

4.The cylinder can be equiped with a motor or gear box, and the motor brands and gear box brands can be designated by the customers, please kindly contact our sales for more detailed information;

Dimensions

DGRHT100 Long Stroke 15KN Lifting Electric Linear Actuator Dimensions

Precision electric cylinder for automated machines

Model Code

DGRHT100 Linear Actuator For Automatic Alignment Machine Model Code



High precision servo electric linear actuator
